Customer’s ‌requirements:

·       Valve function and connection: On-off, Flange type

·       Valve size and pressure: 8″, 10″, Class 150

·       Medium parameters: Pulp and paper, ≤+100℃

·       Actuator: Double Acting Pneumatic Actuator

Miwival’s ‌solution:

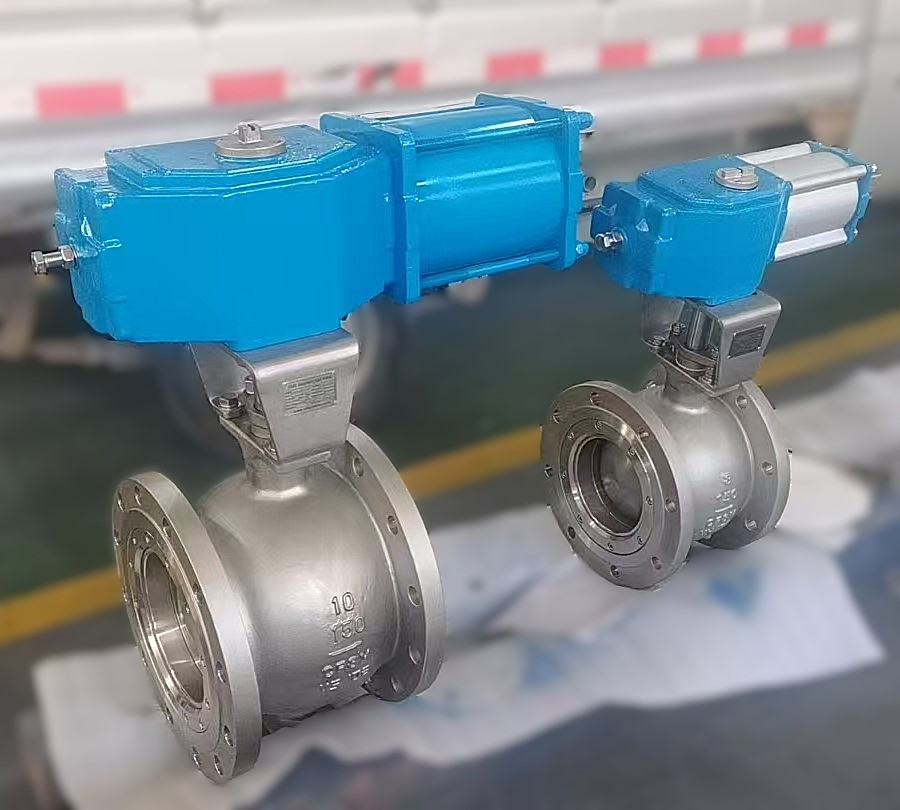

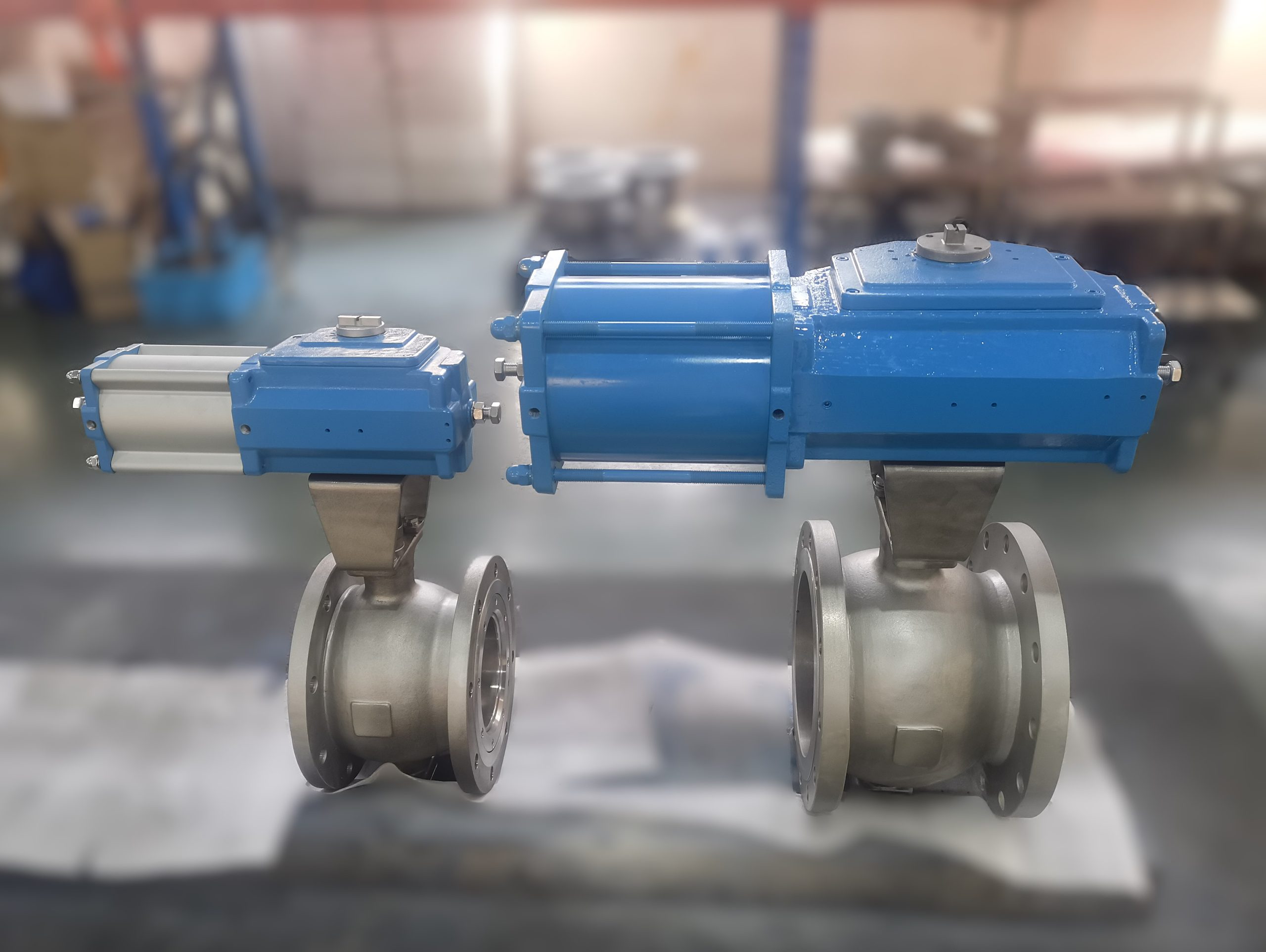

·       Valve type: Segment ball valve, Flange, 8″, 10″, Class 150

·       Valve material: Body: CF8M, Trim: SS316+HCR, Seat: SS316+STL; Stem: 17-4PH

·       Actuator: Crank arm double acting pneumatic actuator

·       Available functions: Metal to metal seat, Wear resistance, Prevent jamming, Smaller torque
