How General and High-Performance Butterfly Valves Differ in Design

General butterfly valves are built with a basic setup. A disc in the center spins on a shaft. They often use soft seats made from materials like BUNA-N or EPDM. These valves have a one-piece body with a seat molded right into it. This boosts their ability to handle pressure. It also lets them work in faster-flow systems. They’re great for two-way, leak-free sealing. This makes them perfect for low-pressure setups where you need a tight seal. The bonded elastomers make them tough. They keep sealing well even in tricky conditions.

High-performance butterfly valves, though, are made for tougher jobs. They have a disc that’s slightly off-center. They also use a unique seat design and RPTFE sealing tech. These features make them a strong, lightweight, and cheaper option compared to gate valves or bulkier designs. Many have double or triple offset designs. These cut down on friction between the disc and seat when the valve moves. This means less effort to operate and a longer-lasting valve. They also use advanced sealing, like flexible lip seats or fire-tested designs. These keep them reliable in extreme situations.

Materials and How Long They Last

The materials in butterfly valves play a big role in how well they work and how long they last. General-purpose valves often use stainless steel or cast iron for the body. Their seats are made from elastomers like EPDM or BUNA-N. These materials handle corrosion and wear fine in everyday uses. But they might not hold up against harsh chemicals or high heat.

High-performance butterfly valves use fancier materials to last longer. For example:

You can pick materials like duplex stainless steel 2205/2507, super austenitic stainless steel 904L, Hastelloy C276, Monel 400, titanium alloy, or copper alloy, depending on the job. These materials let the valves handle extreme pressures, temperatures, and corrosive settings. For instance:

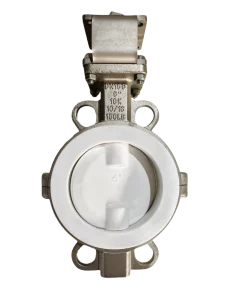

Hastelloy C276 valves with PTFE seats are used in chemical plants. They stand up to harsh chemicals.

Also:

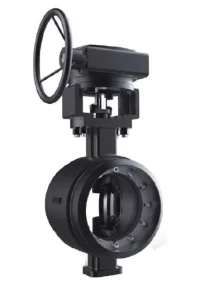

Triple offset valves are lighter and take up less space. They save money too. Their metal seats keep sealing tightly even after lots of use.

Handling Pressure and Temperature

General-purpose and high-performance butterfly valves handle pressure and temperature very differently.

General-purpose valves are good for moderate pressures, usually up to PN16. They work in temperatures from -20°C to 120°C, depending on the materials. They’re designed for two-way, leak-free sealing. They keep the line media away from the stem or valve body. But they might not do well in extreme conditions because of weaker materials.

High-performance valves shine in high-pressure settings, up to Class 150. They also handle high temperatures. Their strong design includes fire-tested and cryogenic features. These keep them working in tough conditions. Triple offset designs cut friction during operation. For example:

Their two-way, zero-leak seal with a metal seat gives the kind of tight closure you’d expect from softer-seated valves. This makes them great for critical jobs like isolating steam or handling harsh chemicals.

Butterfly valves are key players in fluid control systems. They’re versatile and efficient. General-purpose ones handle standard tasks well. High-performance ones tackle tougher jobs with features built for harsh conditions.

Where General Butterfly Valves Are Used

General butterfly valves are common where pressures and temperatures aren’t too extreme. Their simple design has a disc that turns on a shaft. This makes them useful in many industries. Their one-piece body and molded-in seat increase their pressure rating. They can handle faster flows too. These valves are great for two-way, leak-free sealing. They control the flow of liquids or gases well.

Industries like water treatment, HVAC, and general industrial work rely on them. They’re affordable and adaptable. Materials like BUNA-N and EPDM make them durable. They handle normal conditions just fine. The series also ensures two-way, leak-free sealing and keeps the line media away from the stem or valve body. This makes them ideal for low-pressure systems where you need a tight seal without spending a lot.

They work with different controls, like manual, pneumatic, or electric. This makes them even more useful. From shutting off pipelines to managing flow in moderate temperatures, these valves are dependable in fluid control systems.

Where High-Performance Butterfly Valves Are Used

High-performance butterfly valves are built for tough tasks. They offer top-notch sealing and handle extreme conditions. Their off-center disc, unique seat design, and RPTFE sealing tech make them a strong, lightweight, and cost-effective alternative to gate valves or heavier designs. These features make them stand out in industries like petrochemicals, energy production, and chemical processing.

They can handle high pressures, up to Class 150, and high temperatures. Fire-tested and cryogenic designs keep them reliable in extreme settings. For example:

Triple offset valves are lighter and smaller. They also save money. This makes them great for tight spaces.

Special materials improve their performance. For instance:

Hastelloy C276 valves with PTFE seats are used in chemical plants. They resist harsh chemicals well. These materials keep the valves strong over time.

Also:

Their two-way, zero-leak seal with a metal seat offers the kind of reliability you’d expect from softer-seated valves. This makes them perfect for critical jobs like isolating steam or handling dangerous substances.

Miwival has a wide range of butterfly valves for all kinds of industrial cases. Whether you need general-purpose valves for everyday tasks or high-performance ones for tough environments, Miwival offers reliable, budget-friendly solutions. Check out Miwival’s smart designs for top performance across industries today!

FAQ

Q: What makes high-performance butterfly valves last longer?

A: High-performance valves use special tough materials. Like duplex stainless steel, Hastelloy C276, Monel 400, or titanium alloy. These materials fight off rust and corrosion really well. They also stand up to high pressure and extreme heat or cold. Other features make them tougher too. Metal seats help. So do triple offset designs. These things mean the valve keeps working right. Even after being opened and shut loads of times.

Q: Where do high-performance butterfly valves work best?

A: You’ll find them doing great in tough industrial jobs. Like in petrochemical plants. Or energy production facilities. Chemical processing plants too. They’re built to deal with high pressures – up to Class 150 rating. They handle really hot or cold temperatures. And they manage harsh, corrosive chemicals safely. This makes them perfect for critical tasks. Like shutting off steam lines. Or handling dangerous stuff.
