How Should Buyers Specify Diaphragm Valve Actuation for Automated Chemical Process Lines?



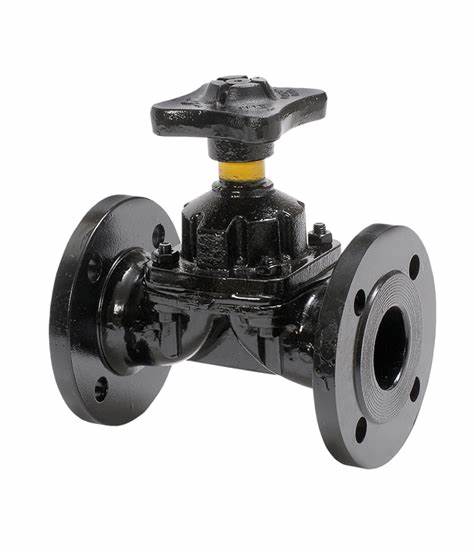

Specifying diaphragm valve actuation for an automated chemical process starts with the required valve action, not with the actuator brand. The process team needs to define whether the valve is used for isolation or regulation, what should happen when air or power is lost, how quickly it must move, and what media, pressure, temperature, and cycling conditions the assembly will face. In corrosive or slurry service, the actuator also has to work with the valve’s diaphragm and operating thrust without introducing unnecessary stress. A useful purchase specification therefore connects process safety, actuator type, control signal, fail position, accessories, maintenance access, and verification documents.

What Should Be Defined Before an Automated Diaphragm Valve Is Quoted?

Automation choices only make sense after the process duty is clear.

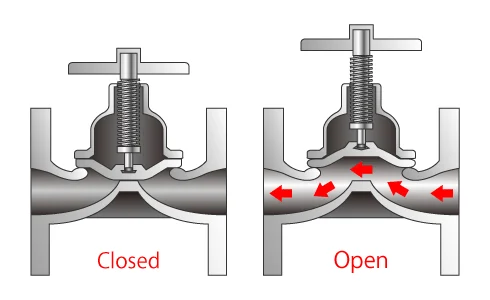

Start With the Required Valve Function

The RFQ should state whether the diaphragm valve is on-off or modulating, how often it will operate, and whether the process can tolerate a slow response. It should also identify normal and maximum pressure, temperature, medium, line size, connection type, and any solids or corrosive constituents that affect the wetted parts.

The project specification should define the actual process duty before actuator selection. A valve used only for periodic isolation does not impose the same operating requirements as one working repeatedly in a dosing or batch sequence.

Define the Loss-of-Energy Condition Early

Automation engineers should decide what the valve needs to do if instrument air, electrical power, or the control signal is lost. The required response may be fail closed, fail open, or remain in its last position, depending on process risk.

This decision affects actuator architecture and accessories and should appear in the valve data sheet rather than being left to the supplier to infer later.

Which Actuator Type Fits the Required Operating Duty?

The actuator has to provide enough force through the full stroke while matching the plant’s utilities and control philosophy.

Pneumatic and Electric Operation Solve Different Problems

Pneumatic actuation suits plants with reliable instrument air and defined fail action, while electric actuation can suit sites where air is unavailable or electrical control is standardized.

Buyers should compare utility supply, cycling frequency, required stroke time, ambient environment, fail behavior, local manual operation, and maintenance capability. A broader valves and automation portfolio shows how valve automation can be reviewed together with the valve rather than treated as a separate purchasing item.

Why Is Actuator Force More Important Than Nominal Size?

Actuator sizing should be based on the force or thrust required to move and seat the valve under the stated pressure conditions. Diaphragm stiffness, valve design, differential pressure, and the selected design margin can influence that requirement.

The technical bid should therefore state the sizing basis instead of only listing an actuator model. This gives the engineering team something concrete to review when operating pressure, cycling conditions, or valve construction changes.



How Should Control Signals and Accessories Be Specified?

The actuator, solenoid, position indication, positioner, air preparation, and control system must be compatible.

On-Off and Modulating Service Need Different Packages

An on-off valve may only require an actuator, switching device, and open/closed feedback. Modulating service normally needs a way to position the valve in response to a control signal, along with suitable feedback.

The purchase specification should identify signal type, supply voltage where relevant, instrument-air range for pneumatic systems, required feedback, local indication, and any project-defined hazardous-area or enclosure requirement. For chemical process systems, the chemical industry solution is a useful application reference, but signal and accessory requirements should still come from the site control philosophy.

Item to confirm	Why it matters
Valve duty	Separates isolation from modulating service
Fail position	Defines behavior after loss of energy
Utility supply	Determines practical actuator options
Control signal	Ensures control-system compatibility
Feedback requirement	Confirms valve status remotely
Stroke time	Prevents an actuator from being too slow or unnecessarily fast

These items should be completed before quotation.



What Should Buyers Check About Reliability and Maintenance?

Automation adds components that need their own service access.

Cycling Frequency Changes the Maintenance Picture

The RFQ should state expected operating frequency, especially for batch or dosing sequences. A valve that cycles frequently places a different demand on the actuator and diaphragm from one that remains open for long periods and moves only during maintenance or shutdown.

Maintenance teams should also be able to reach the actuator, accessories, diaphragm, and connection points without removing unrelated piping. If the valve is installed beneath a skid, behind a vessel, or close to structural steel, actuator removal space can become more important than face-to-face dimension.

Keep the Valve and Actuator Records Together

Keep the approved valve drawing, actuator data, accessory list, wiring or pneumatic details, and material specification together for future maintenance.

A relevant diaphragm valve project case records valve function, connection, size, pressure, medium parameters, material, and actuator information as one project definition. The published case itself uses manual operation, so it should not be treated as an automated-valve example; its value is the way the project inputs are documented together.

What Should Be Verified Before the Purchase Order Is Released?

The final technical review should confirm that the actuator package matches the valve and stated process conditions.

Review the Complete Assembly, Not Separate Components

Check the valve size and pressure rating, body and diaphragm materials, actuator type, required thrust basis, fail action, control signal, accessory package, stroke time, connection dimensions, and installation orientation. Any exception to the project data sheet should be listed clearly.

The drawing should show the overall envelope because an automated assembly can be much taller or wider than a manually operated valve. If the actuator needs vertical removal space, that clearance should be visible before the skid or piping layout is frozen.

Agree testing and inspection requirements before manufacture, including functional and accessory checks. The purchasing team should also confirm which documents will be supplied with the finished assembly so commissioning and future maintenance do not depend on undocumented assumptions.
